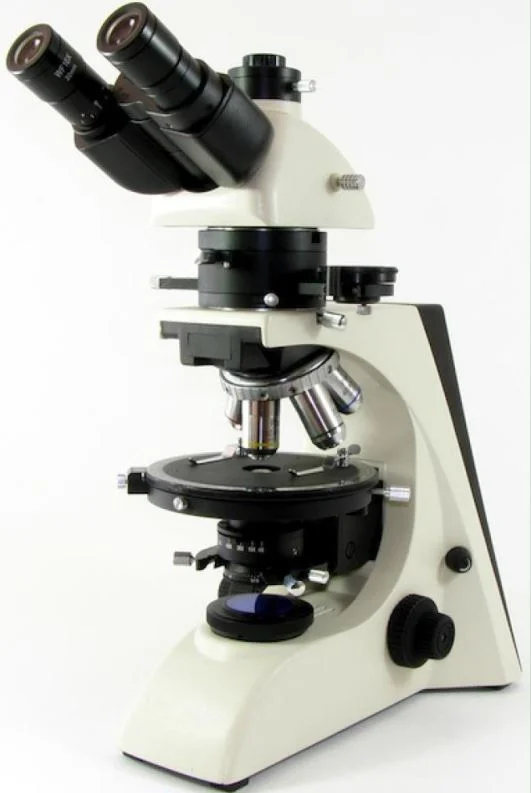

MT-1 POL is an advanced robust trinocular polarising microscope for transmitted light using a 6V 30W Halogen light source.

Supplied with a range of strain free Planachromat objectives, (FN22) eyepieces, centerable nosepiece, 158mm rotating stage, 360 degree rotatable analyser, Bertrand lens and a range of compensation plates and quartz wedge.

MT-1 POL Trinocular POL microscope with:-

• Trinocular phototube
• Wide-field 10x/22 eyepieces – one focusing with cross-line & scale graticule
• Intermediate tube with rotating analyser
• Bertrand Lens
• Quintuple centering nosepiece
• Built-in 6v 30W Halogen Kohler illumination
• Planachromat 4x/0.10
• Planachromat 10x.0.25
• Planachromat 20x/0.40
• Planachromat 40x/0.65
• Rotating centering stage 158mm diameter with vernier scale
• Focusing centering NA 1.25 Abbe condenser with iris diaphragm & 360° rotating polariser with 5° scale
• λand λ¼ compensators
• Quartz wedge 1-4 orders

MT-1M POL as above with additional:-

• 12v 50w halogen incident illuminator with field iris and aperture iris
• Incident polariser
• Strain free objectives for non-cover slipped specimens:
  • Planachromat M20x/0.40
  • Planachromat M40x/0.65
